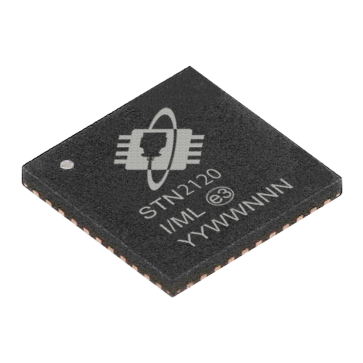

STN2120 OBD-II, SW-CAN, MS-CAN to UART Interpreter IC

STN2120 offers the same features and functionality as STN1170 with even higher performance. STN2120 offers twice as much flash and four times as much RAM, while keeping the same low cost as STN1170.




Lead Time Notice: Orders of 200+ may have a lead time of up to 4 weeks. Please contact us with any related questions before placing your order.

Availability: Out of stock

$12.38
  • Buy 10 for $11.78 each and save 5%
  • Buy 100 for $10.59 each and save 15%
  • Buy 1000 for $9.62 each and save 23%
Item# 3662
Details

Details

STN2120 is a 44-pin OBD to UART interpreter IC that provides bi-directional, half-duplex communication with all vehicle OBD-II legislated protocols, plus support for SW-CAN (GM) & MS-CAN (Ford). STN2120 is available at the same price as STN1170, yet has twice as much flash and four times as much RAM, allowing for more features to be included with future firmware updates and higher performance.

SW-CAN protocol support allows your device to access, monitor and issue commands on vehicles utilizing GM’s proprietary CAN network. Similarly, MS-CAN provides access to Ford’s proprietary CAN network on supporting models.

On vehicles hosting SW-CAN or MS-CAN networks, our enhanced ST command set allows your device to interpret data not available on the vehicle’s OBD-II bus. Using the GM & Ford proprietary codes, you can commonly interpret current status of systems such as:

  • Seat belt
  • Airbag
  • Headlight
  • Anti-Lock Brake (ABS)
  • Traction Control
Control commands commonly found on supported vehicles include:

  • Door lock/unlock
  • Window up/down
  • Radio volume up/down
  • Turn signals & Hazard on/off
  • Engine start/kill
While STN2120 ST commands will provide access to SW-CAN and MS-CAN networks, the proprietary GM & Ford codes must be obtained independently. A popular method is to join the Equipment and Tool Institute where the codes can be accessed/purchased. Alternately, the traffic can be analyzed and reverse engineered.

KEY FEATURES

  • Configurable GPIO pins.
  • Safe, secure bootloader. Reflash the firmware in the field, even over a poor quality link and avoid expensive product recalls.
  • Fully compatible with ELM327 command set, ensuring out-of-the-box compatibility with the dozens of existing software applications.
  • Extended “ST” command set provides access to enhanced functionality, without compromising compatibility.
  • PowerSave mode with multiple sleep and wakeup triggers. Ideal for permanent in-vehicle setups, device can be left connected for extended periods of time without draining the battery.
  • Perfect form factor for any application. STN2120 is available in the QFN44 package.
  • RoHS compliant

STABILITY

  • Solid, field-tested software. STN2120 runs the same proven code that powers the popular STN1110 and OBDLink family of PC-based OBD interfaces. Thanks to its large user base, any problems are discovered and corrected quickly.
  • Large OBD message buffer. STN2120 has over five times as much RAM as its nearest competitor, virtually eliminating BUFFER OVERFLOW errors.
  • Automatic protocol detection algorithm is continuously fine-tuned to insure that STN2120 will connect to the widest array of vehicles, even those that do not fully conform to the OBD-II standard.

POWERSAVE SLEEP & WAKEUP TRIGGERS

The diagram shows the various triggers available in the STNxxxx family of ICs. Please refer to the STNxxxx PowerSave Functionality documentation for more details.
PowerSave Diagram
