CAN Bus ECU Simulator

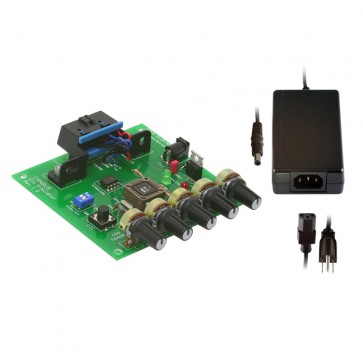

The ISO 15765-4 CAN ECU Simulator is a valuable tool for the development and testing of OBDII diagnostic programs and hardware. The DTC button can be used to generate trouble codes and illuminate the MIL LED. The trouble codes can be cleared using a Service 4 request or by simply cycling the power to the simulator. Physical connection is made through a standard SAE J1962 connector. This item ships with a 12V switching power supply and a U.S. style/UL listed power cable.

• 5 adjustable PIDs via potentiometers (coolant temperature, RPM, Speed, O2 voltage and MAF)
• 39 fixed-value PIDs
• Standard J1962 connector
• DTC/MIL/Freeze Frame simulation button
• MIL and Connection LEDs
• ISO 15765-4, 11/29 bit selectable
• User configurable baud rate (250/500 kbps)
• EOBD ECU Address range
• Functional addressing

Supported PIDs

PID#
01 - Monitor status since DTC's cleared
02 - DTC that caused required freeze frame data storage
03 - Fuel system status
05 - Engine coolant temperature
0C - Engine RPM
0D - Vehicle speed sensor
10 - Air flow rate from MAF
13 - Location of oxygen sensors
14 - O2 sensor Bank 1 sensor 1
1C - OBD requirements to which vehicle is designed
1F - Time since engine start

Contents

• ECU Simulator, CAN Bus
• Power Supply, 12VDC @ 3.33A
• Power Cord, IEC, UL Listed, 6ft
